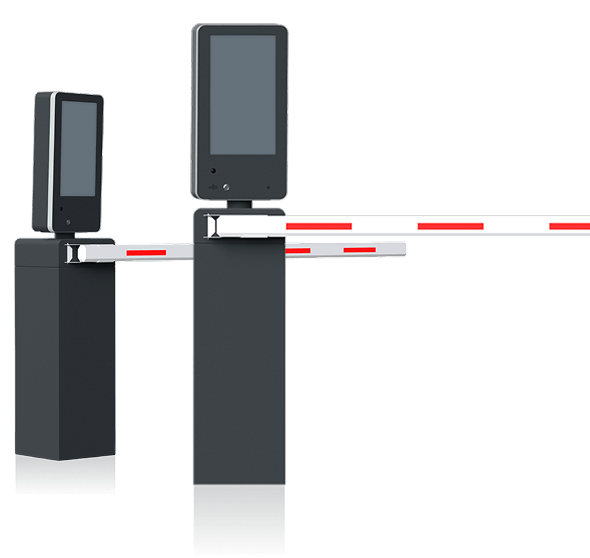

Kutech QR Entry/Exit Module

Key features

Does not require the installation of special mobile applications, only a smartphone with a camera and a QR scanner;

Works entirely on a digital medium;

Bright LCD display with a diagonal of 21.5 inches. 1500 Candel. With a light sensor;

The system can work without a parking meter;

Ergonomic and modern design;

Industrial computer with an I7 processor.

The RFID reader makes parking more convenient by providing non-stop entry and exit for regular customers;

The vehicle license plate recognition system allows for identification and payment based on the license plate number.

Power consumption	up to 300 W
Battery life	depends on the capacity of the shared UPS
Travel time for one vehicle	up to 5 seconds
Operating temperature	from -40 to +50
Used color	RAL7035_RAL7016 (light gray+graphite), RAL7046_RAL7016 (dark gray+graphite), RAL9016_RAL7016 (graphite+white)
Connection interfaces	TCP / IP
Enclosure protection class	IP54
Supply voltage AC	220 V/ 50 Hz
Dimensions (WxLxH)	380x1807x360

Generation of a unique QR code for each visitor

Issuance of an electronic ticket

Working with regular customers

Online payment from a smartphone

Integration with the ParkPass service

Voice communication with an operator
